Spring Washers Type B Flat/ Split Lock Washers

Description

Spring washer flat, often simply referred to as a spring washer or disc spring, is a mechanical component designed to provide a compensating spring force in a bolted or fastened joint. These washers are engineered to exert a continuous axial load that helps maintain tension, prevent loosening, and absorb shock or vibrations in assemblies. Unlike standard flat washers, which primarily distribute load, spring washers actively apply force, making them especially valuable in dynamic or high-stress environments.

The lock washer prevents nuts and bolts from turning, slipping and coming loose because of vibration and torque.

The washer has sharp edges that dig into the nut as well as mounting surface in order to prevent rotation in the counter clockwise direction.

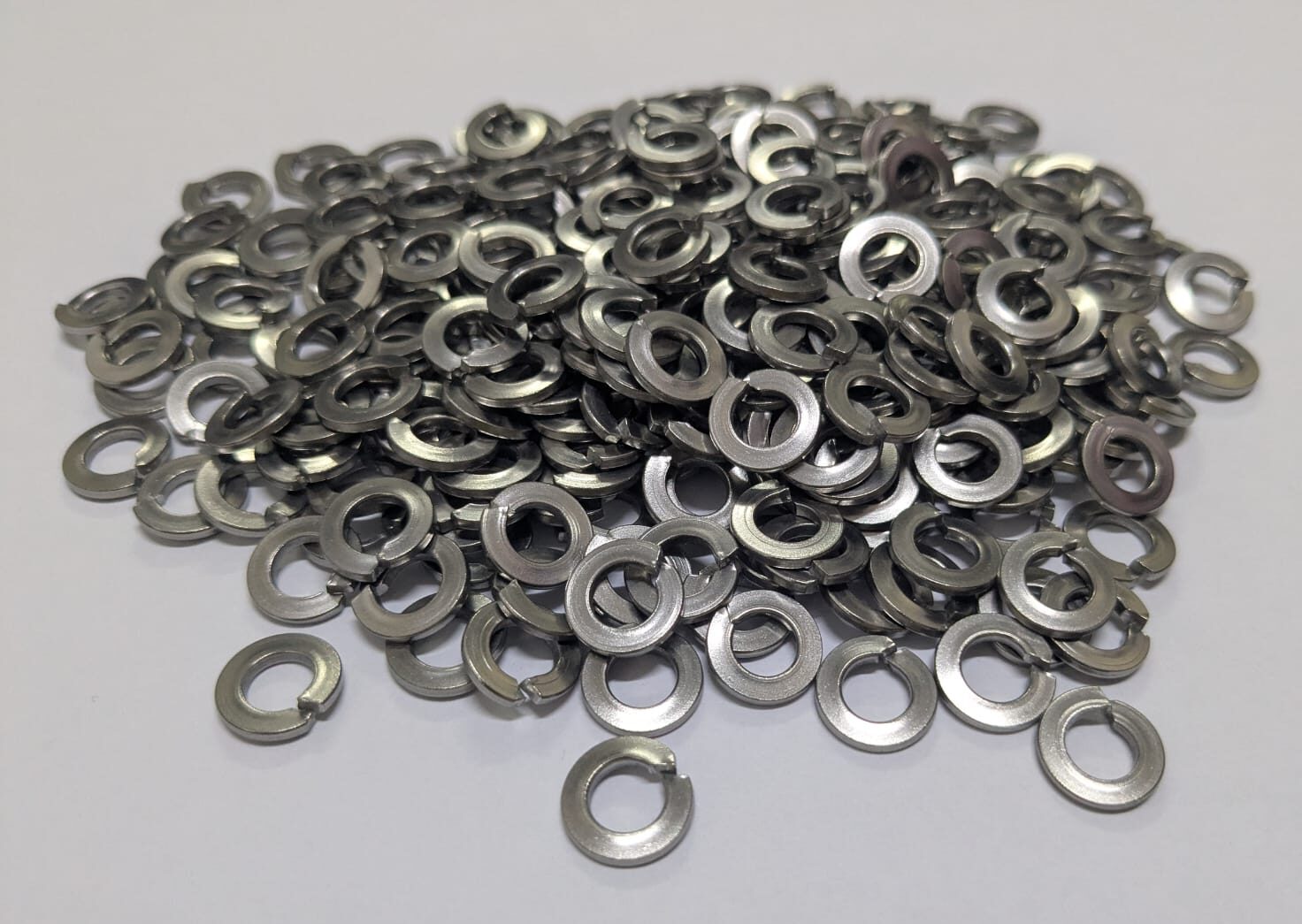

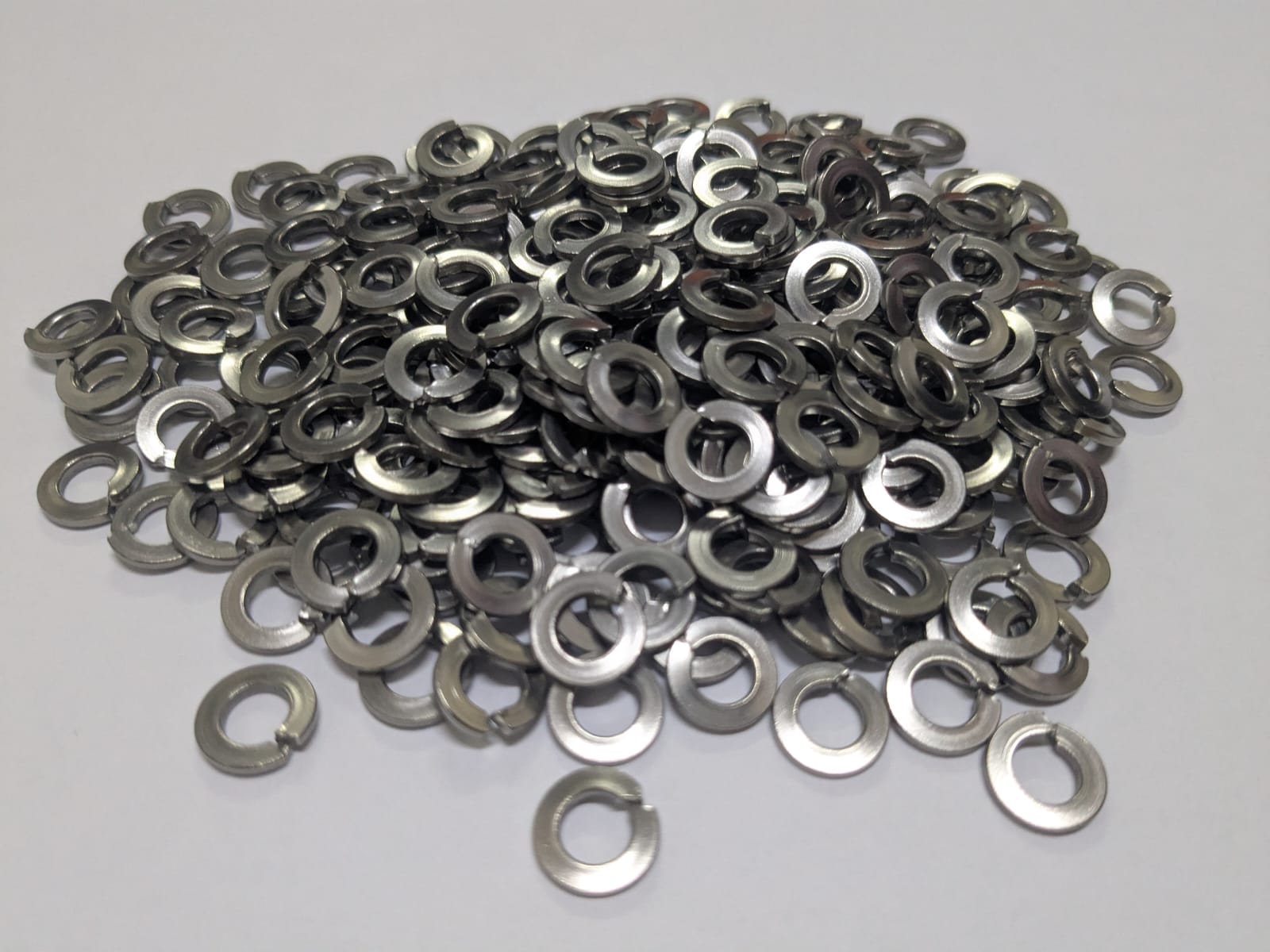

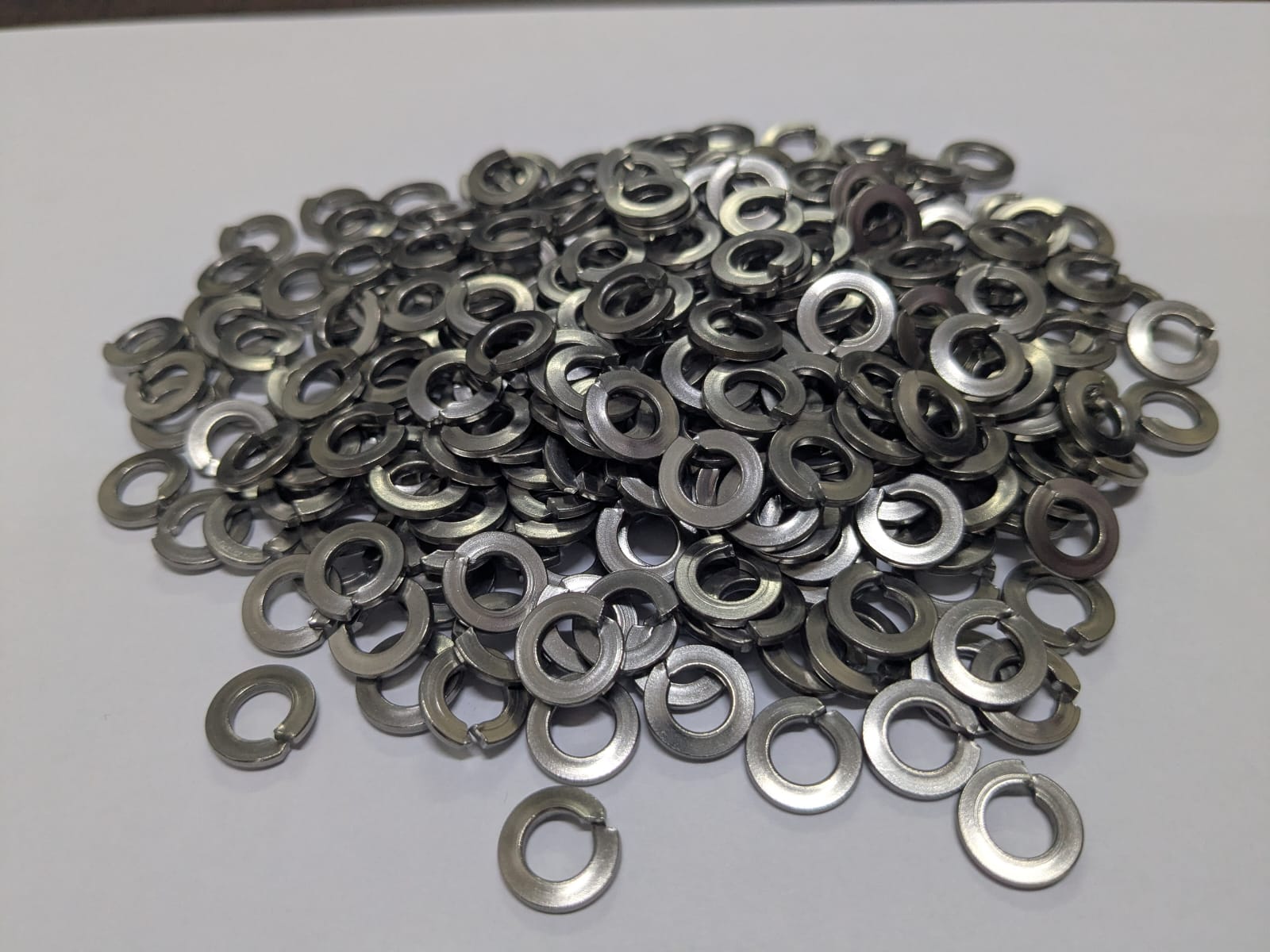

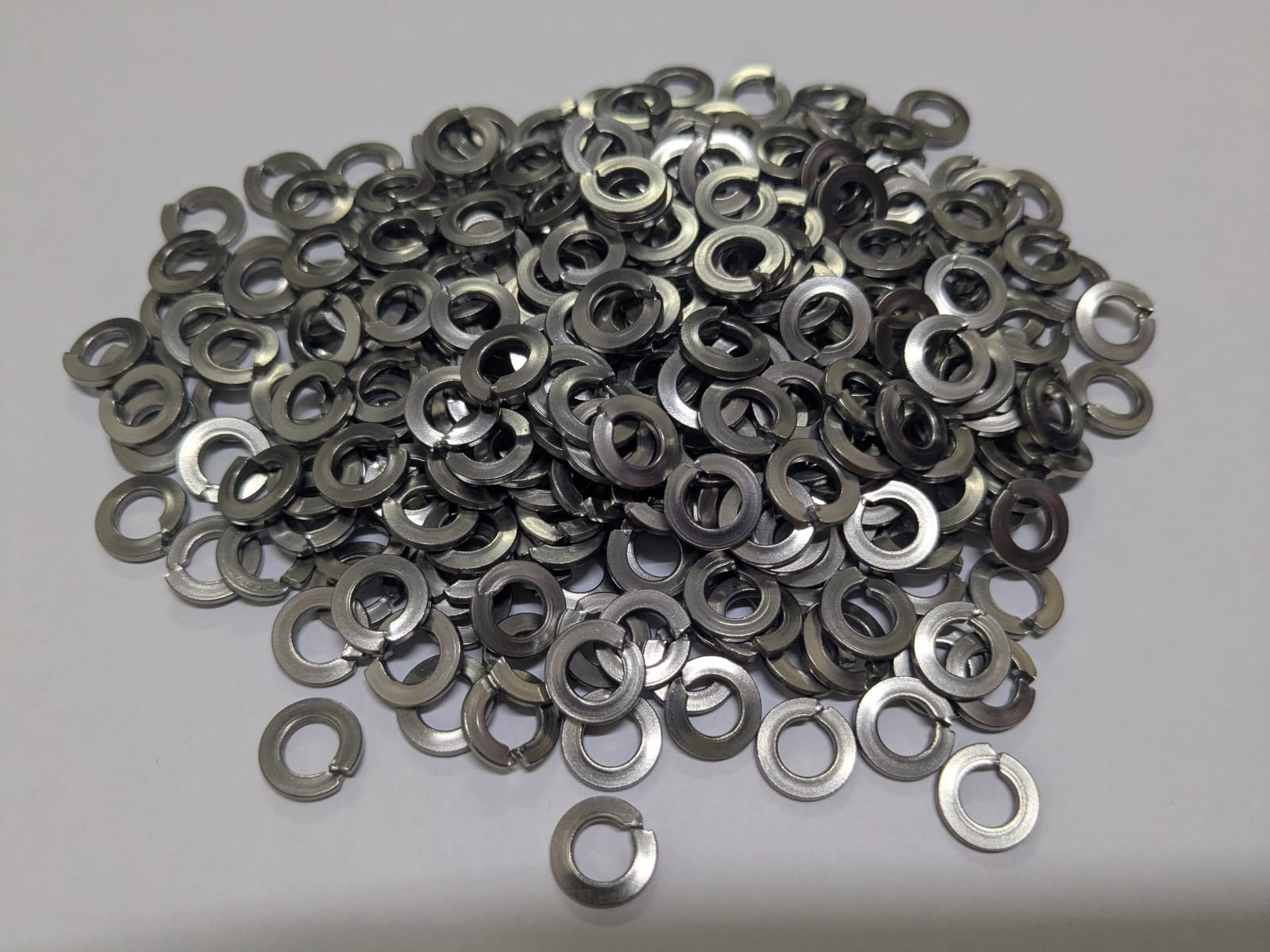

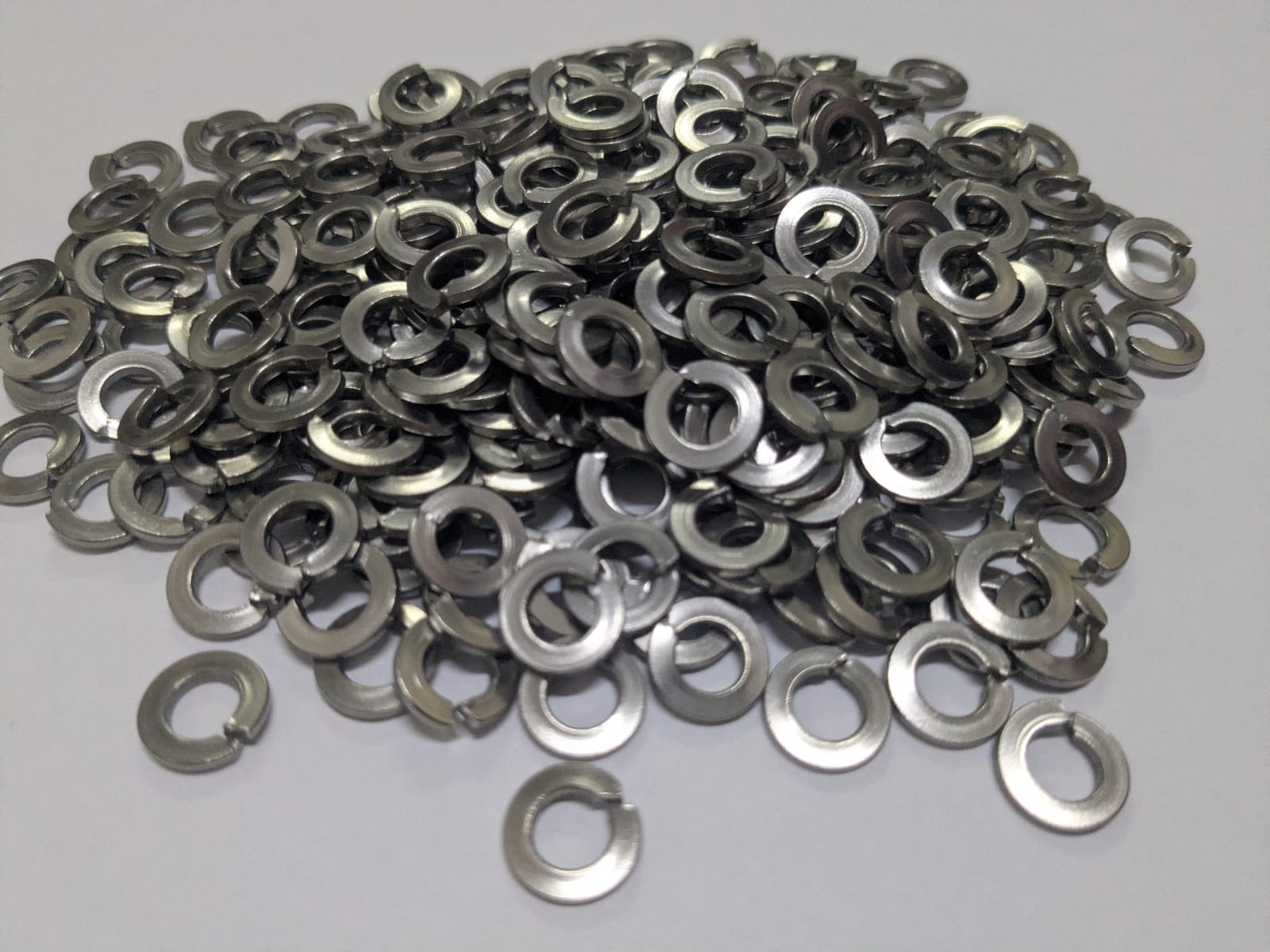

Spring Lock Washers are of many types, most common one being the helical split washer. A ring split at one point and bent into a helical shape. This causes the washer to exert a spring force between the fastener’s head and the substrate, which maintains the washer hard against the substrate and the bolt thread hard against the nut or substrate thread, creating more friction and resistance to rotation.

Design and Construction of Spring washer flat

Flat spring washers are typically manufactured from spring steel, stainless steel, phosphor bronze, or other high-strength alloys. These materials are selected for their ability to withstand repeated loading and deformation without permanent set.

Flat spring washers come in various shapes and configurations, but they are often characterized by a slightly conical or curved shape that gives them their elastic properties. When compressed during installation, the washer flattens and exerts a resisting force that maintains the integrity of the assembly.

Some common variants include:

• Belleville washers (coned-disc springs): Known for high load capacity in a compact size.

• Wave washers: Designed with a wavy shape for lighter loads and better flexibility.

• Curved washers: Gentle curve for moderate spring force and load compensation.

Applications of Spring washer flat

Flat spring washers are used in a broad range of industries where vibration, shock, or thermal changes are common:

• Automotive Industry: Used in engine assemblies, brakes, transmissions, and suspension systems to maintain secure connections under vibration.

• Aerospace: Employed in aircraft systems to ensure the reliability of fasteners in high-vibration environments.

• Defense and Robotics: Critical in precision machinery and military hardware, where durability and safety are paramount.

• Electrical Equipment: Used in switchgear, terminals, and circuit assemblies to maintain electrical connections under varying loads.

• Industrial Machinery: Found in pumps, compressors, and gear systems to stabilize mechanical joints.
