Clinch Nuts

Description

Clinch nuts, also known as self-clinching or press-in nuts, are fasteners designed to create strong, permanent threads in thin or soft materials like sheet metal. They are commonly used in applications where the base material is too thin to tap threads or where additional thread strength is required.

Design and Installation:

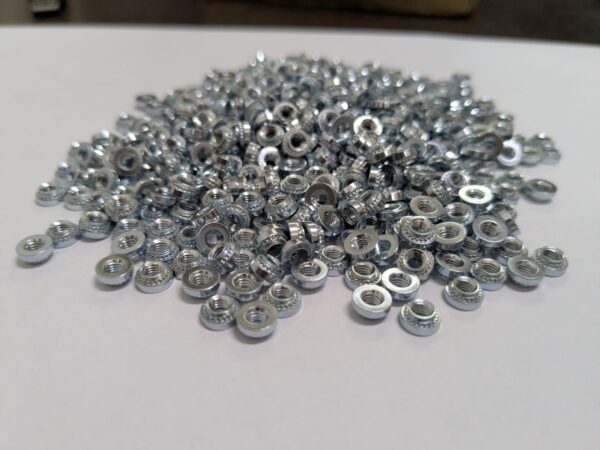

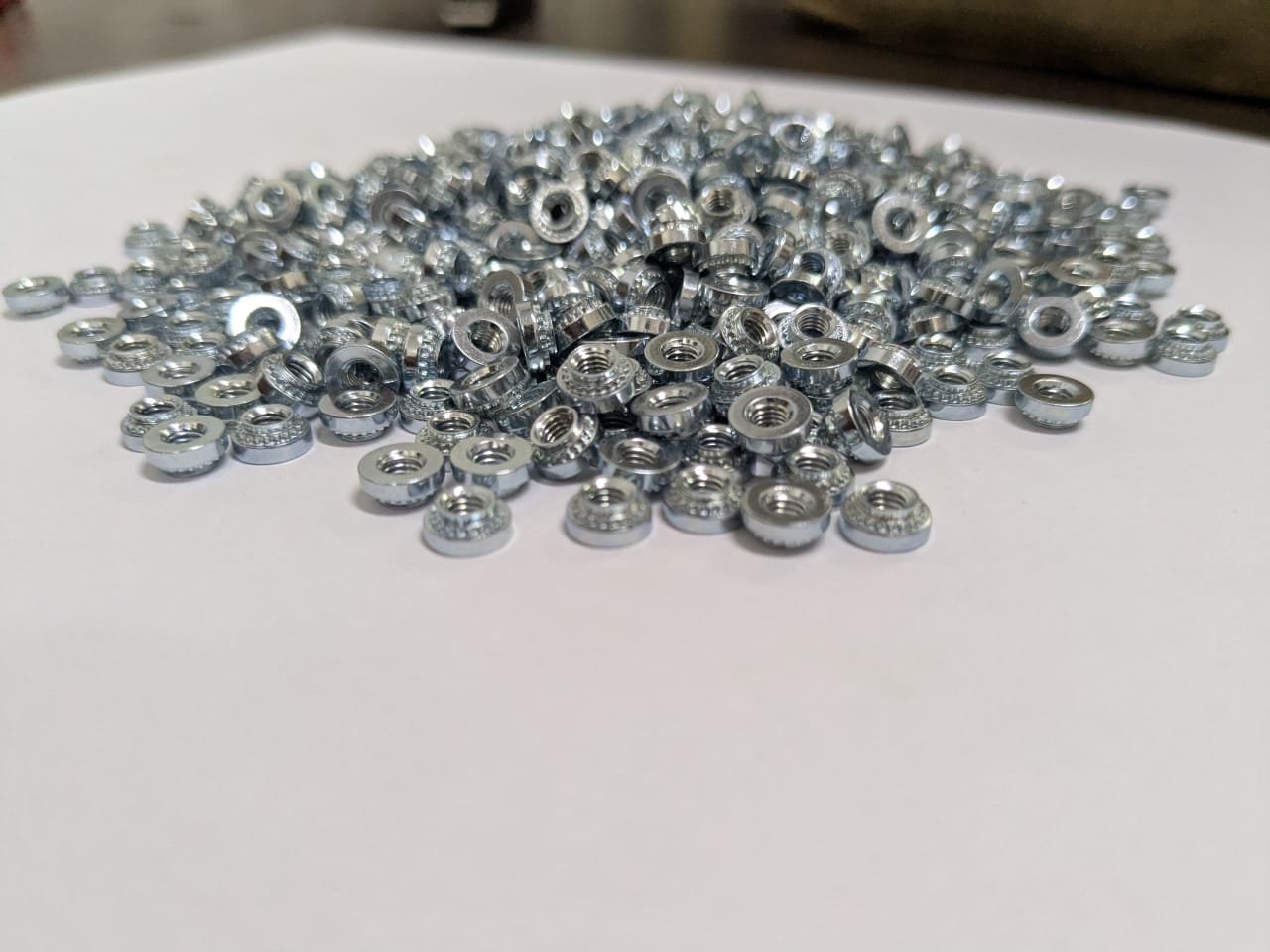

A typical clinch nut features a round body with a serrated clinching ring or knurl near its base. During installation, the nut is pressed into a pre-punched hole in the sheet metal. The force causes the surrounding material to flow into an undercut beneath the knurl, securely locking the nut in place and preventing rotation.

Advantages:

• Strong Threads: Clinch nuts provide durable threads in materials that are too thin for conventional threading.
• Permanent Attachment: Once installed, they become a permanent part of the assembly, offering high resistance to torque and push-out forces.
• No Welding Required: Unlike weld nuts, clinch nuts eliminate the need for welding, reducing potential issues like weld spatter and material compatibility concerns.

Applications:

Clinch nuts are widely used across various industries, including:

• Automotive: For attaching components like bumpers, seat belt assemblies, and engine mounts.
• Aerospace: To provide strong, lightweight threaded connections in aircraft interiors and structures.
• Electronics: For mounting circuit boards and other components where space is limited, and reliable threading is essential.

Their versatility and reliability make clinch nuts a preferred choice for engineers seeking robust fastening solutions in thin materials.
