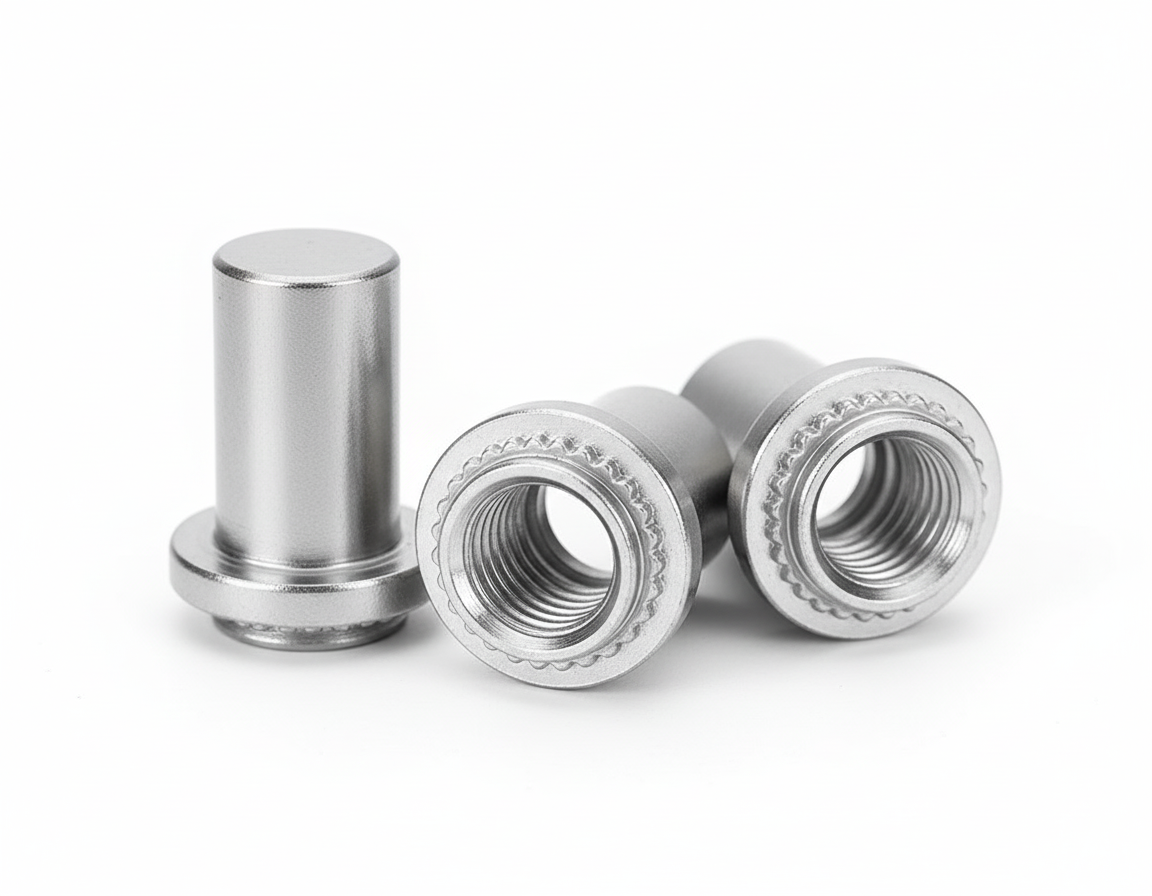

Self Clinching Blind Fastener

Description

Self-clinching blind fasteners are specialized components designed to provide strong, permanent threads in thin metal sheets while preventing the intrusion of foreign materials through the threads. They are particularly useful in applications where maintaining the integrity of internal components is crucial, such as in electronic enclosures or sealed assemblies.

Design and Functionality:

These fasteners feature a closed-end design that blocks contaminants like dirt, oil, or moisture from passing through the threaded section. This blind configuration also limits the depth of screw penetration, safeguarding internal components from potential damage. The installation process involves pressing the fastener into a pre-punched hole in the sheet metal. Under sufficient force, the fastener’s knurled or serrated shank displaces the surrounding material, creating a secure, permanent attachment that resists both rotational and axial forces.



Advantages:

  • Contaminant Protection: The closed-end design prevents foreign substances from entering the assembly through the threads, enhancing the durability and reliability of the final product.
  • Component Safety: By limiting screw penetration, these fasteners protect sensitive internal parts, such as electronic circuits, from accidental contact or damage.
  • Space Efficiency: Self-clinching blind fasteners are ideal for applications with limited access, as they can be installed from one side of the panel, eliminating the need for additional hardware or welding.

Materials and Specifications:

These fasteners are commonly manufactured from materials like heat-treated carbon steel and 300 series stainless steel, offering compatibility with various sheet metals. They can be installed in panels as thin as 1 mm, provided the panel material is softer than the fastener to ensure proper clinching. Standard thread sizes range from M3 to M6 in metric measurements and #4-40 to 1/4-20 in unified sizes.



Applications:

Self-clinching blind fasteners are widely used in industries such as electronics, automotive, aerospace, and telecommunications. They are particularly beneficial in scenarios where internal components must be shielded from environmental contaminants or where space constraints necessitate one-sided installation.

By incorporating self-clinching blind fasteners, engineers and designers can achieve reliable, contamination-resistant threaded connections in thin sheet metal assemblies, ensuring both the performance and longevity of the final product.
