Description

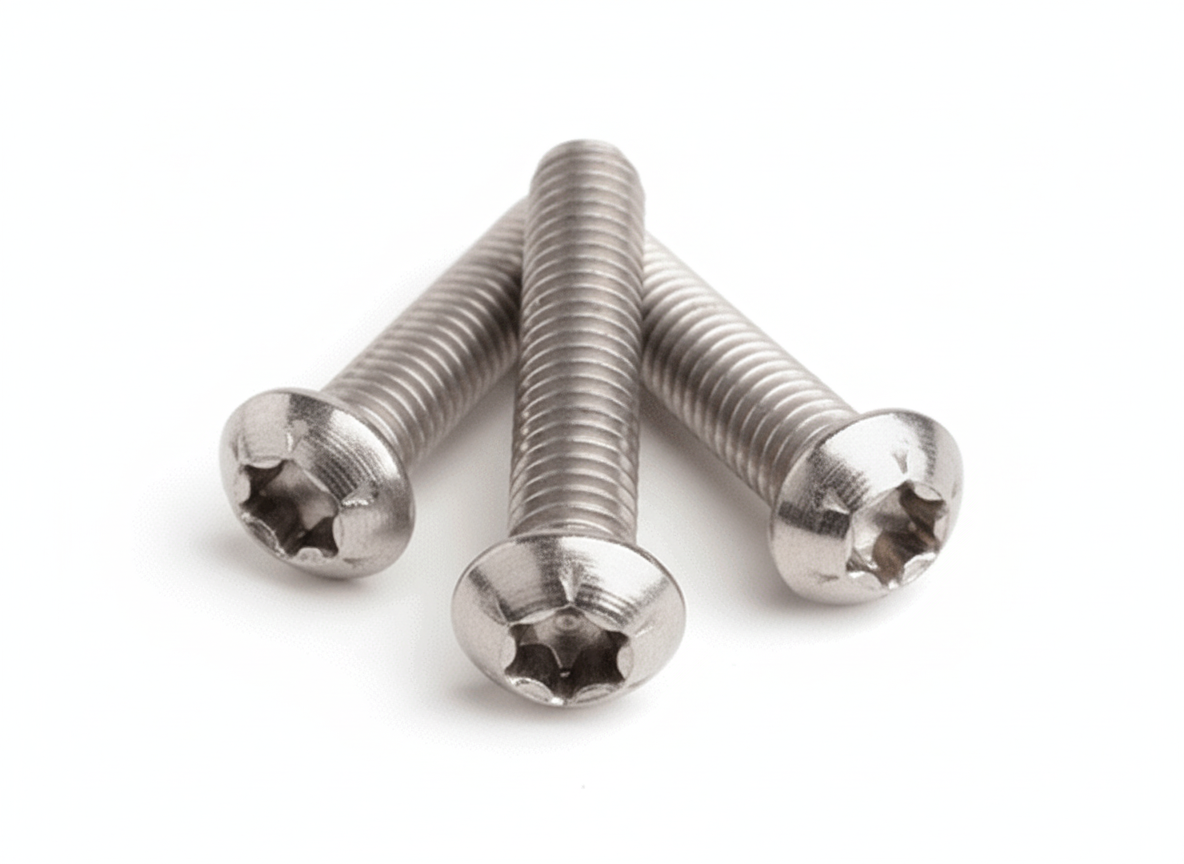

Button head Torx machine screws, also known as 6-lobe machine screws, are a popular type of fastener widely used in mechanical, industrial, and engineering applications. They are recognized for their distinct drive style, offering enhanced torque transmission, reduced cam-out risks, and aesthetic appeal.
Advantages of Button Head Torx Machine Screws
The combination of a button head and a Torx drive delivers several key benefits:
-
High Torque Application: The 6-lobe Torx drive allows higher torque to be applied without damaging the fastener or tool, ensuring secure fastening and long service life.
-
Cam-Out Resistance: The design minimizes slippage between the driver and the recess, reducing the likelihood of stripping the screw head.
-
Enhanced Aesthetics: The smooth, rounded button head offers a clean, finished look that is often preferred in consumer-facing products, electronics, and decorative assemblies.
-
Wide Bearing Surface: The broad underside of the button head distributes the load over a larger area, reducing surface damage and improving clamping effectiveness.
-
Safety: The rounded profile reduces the chance of catching clothing, skin, or materials, which is particularly useful in machinery or furniture applications.
Typical Applications of Button head Torx machine screws
Button head Torx machine screws are versatile and are used across many industries, including:
-
Electronics and Consumer Devices: Where both appearance and torque control are critical, such as in smartphones, laptops, or appliances.
-
Automotive and Aerospace: For securing components that are exposed to vibration and dynamic loads.
-
Furniture Assembly: Particularly in flat-pack or modular furniture where smooth, snag-free surfaces are desired.
-
Medical and Laboratory Equipment: Where precision and hygiene are essential.
-
Industrial Machinery: For securing covers, panels, and guards while ensuring ease of maintenance.
The notion of a drive with hexalobular sockets are a decisive step in developing drives better adapted to manual and automated assembly. This drive is becoming increasingly popular throughout the world.
Compared to drives like cross recesses and conventional hexagon sockets, this system is characterized by a lower risk of deterioration and a lower pressure force requirement. The typical «cam out» slipping of the tool has hence been eliminated and the force transmission improved.
The general dimensions are given in the product information of the respective catalogue group.
The Torx compatible drive is a reliable method of fixing screws. This drive can take more torque and does not slip.
The hexalobular socket screw drive, known as Torx or 6-Lobe or star drive, uses a star-shaped recess in the fastener with six rounded points.
It was designed to permit increased torque transfer from the driver to the bit compared to other drive systems. This system features a 15-degree drive angle which provides high torque transfer.
Radial forces are drastically reduced resulting in longer tool life.
It has vertical sidewalls which increases tool engagement CAMOUT is defined as the force upward on a screwdriver as the torsional force is increased to tighten the screw.
Torx Screws do not have camout problems as no camout forces are created to push the driver up and out of the fastener recess.
Due to this, the pressure required to keep the screwdriver in the socket reduces significantly and therefore reduces operator muscular stress and fatigue.
Because of these advantages, Torx drive screws are very popular in the automotive and electronics industries. This is also the preferred drive for our range of JCSlim thin head screws.
