Description
CSK Torx Machine Screws 6-Lobe are an essential fastener type in modern engineering and manufacturing, offering a combination of secure fastening, aesthetic appeal, and functional advantages. These screws are widely used across industries such as automotive, electronics, machinery, and construction, where precision, reliability, and durability are critical.
-

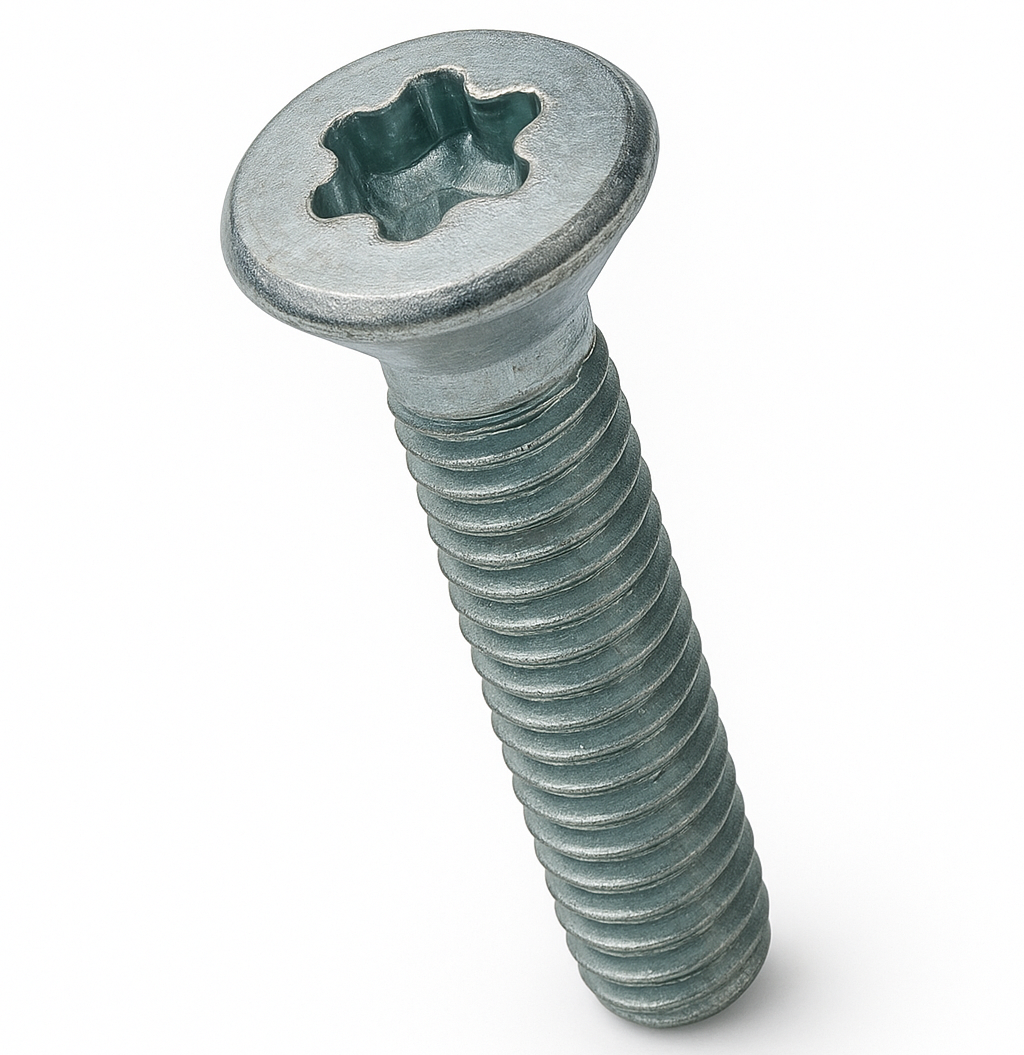

CSK stands for Countersunk, referring to the screw head’s shape. A countersunk screw has a conical head that sits flush or slightly below the surface of the material it’s installed into. This design allows for a smooth finish without protrusions, which is particularly useful for aesthetic applications or where a flat surface is necessary.
-
Torx refers to the drive style of the screw. The Torx drive system, also known as a star or hexalobular drive, features a 6-pointed star-shaped pattern that offers greater torque transmission, reduced cam-out, and less wear on both the screw head and the tool.
-
Machine Screws are a type of screw designed for fastening metal parts together, usually into a pre-threaded hole or with a nut. They have uniform threads along the entire length of the shank.
Applications of CSK Torx Machine Screws 6-Lobe
The unique combination of countersunk design and Torx drive makes these screws ideal for various industries:
-
Automotive Industry: For interior panels, trim components, and assemblies requiring flush finishes.
-
Electronics: Securing circuit boards, enclosures, and casings where space is limited, and aesthetic appeal is important.
-
Machinery and Equipment: Fastening covers, guards, and components where a flush surface is essential for safety.
-
Aerospace: Where vibration resistance, weight reduction, and precision are critical.
-
Furniture Manufacturing: Providing a sleek, smooth finish for visible applications.
-
Construction and Architectural Projects: For fixtures, fittings, and panels where both strength and appearance matter.
The notion of a drive with hexalobular sockets are a decisive step in developing drives better adapted to manual and automated assembly. This drive is becoming increasingly popular throughout the world.
Compared to drives like cross recesses and conventional hexagon sockets, this system is characterized by a lower risk of deterioration and a lower pressure force requirement. The typical «cam out» slipping of the tool has hence been eliminated and the force transmission improved.
The general dimensions are given in the product information of the respective catalogue group.
The Torx compatible drive is a reliable method of fixing screws. This drive can take more torque and does not slip.

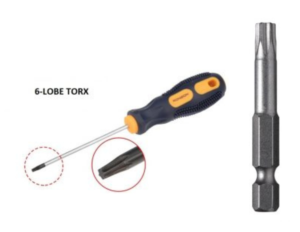

The hexalobular socket screw drive, known as Torx or 6-Lobe or star drive, uses a star-shaped recess in the fastener with six rounded points.
It was designed to permit increased torque transfer from the driver to the bit compared to other drive systems. This system features a 15-degree drive angle which provides high torque transfer.
Radial forces are drastically reduced resulting in longer tool life.
It has vertical sidewalls which increases tool engagement CAMOUT is defined as the force upward on a screwdriver as the torsional force is increased to tighten the screw.
Torx Screws do not have camout problems as no camout forces are created to push the driver up and out of the fastener recess.
Due to this, the pressure required to keep the screwdriver in the socket reduces significantly and therefore reduces operator muscular stress and fatigue.
Because of these advantages, Torx drive screws are very popular in the automotive and electronics industries. This is also the preferred drive for our range of JCSlim thin head screws.
