Description

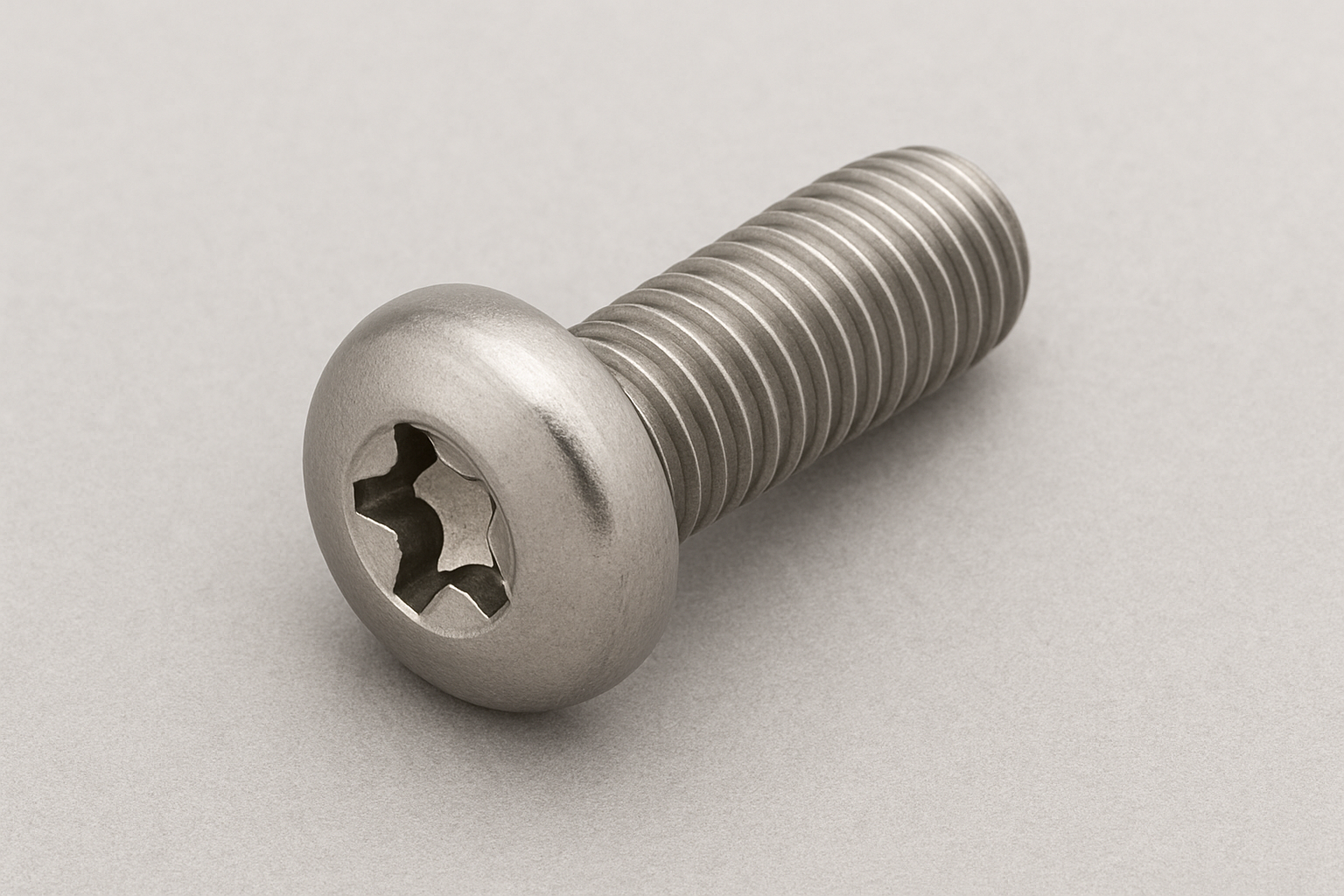

Pan Head 6-Lobe Machine Screws are a critical component in modern fastening solutions, offering a blend of functionality, durability, and design that makes them indispensable in industries ranging from electronics to automotive.
The notion of a drive with hexalobular sockets are a decisive step in developing drives better adapted to manual and automated assembly. This drive is becoming increasingly popular throughout the world.
Compared to drives like cross recesses and conventional hexagon sockets, this system is characterized by a lower risk of deterioration and a lower pressure force requirement. The typical «cam out» slipping of the tool has hence been eliminated and the force transmission improved.
The general dimensions are given in the product information of the respective catalogue group.
The Torx compatible drive is a reliable method of fixing screws. This drive can take more torque and does not slip.
The hexalobular socket screw drive, known as Torx or 6-Lobe or star drive, uses a star-shaped recess in the fastener with six rounded points.
It was designed to permit increased torque transfer from the driver to the bit compared to other drive systems. This system features a 15-degree drive angle which provides high torque transfer.
Radial forces are drastically reduced resulting in longer tool life.
It has vertical sidewalls which increases tool engagement CAMOUT is defined as the force upward on a screwdriver as the torsional force is increased to tighten the screw.
Torx Screws do not have camout problems as no camout forces are created to push the driver up and out of the fastener recess.
Due to this, the pressure required to keep the screwdriver in the socket reduces significantly and therefore reduces operator muscular stress and fatigue.
Because of these advantages, Torx drive screws are very popular in the automotive and electronics industries.
Common Applications of Pan Head 6-Lobe Machine Screws
Pan Head 6-Lobe Machine Screws are versatile and widely used across industries:
-
Electronics: Secure circuit boards, casings, and enclosures where precision, appearance, and reliability are critical.
-
Automotive: Used in interior trim, control modules, and electrical components, where vibration resistance and consistent torque are essential.
-
Aerospace: Ideal for non-structural applications requiring precision fastening without the risk of cam-out.
-
Consumer Goods: From appliances to furniture, these screws offer a clean, professional look with reliable holding power.
-
Machinery and Equipment: Fasten panels, guards, and assemblies in industrial machinery, where frequent maintenance and disassembly may occur.
