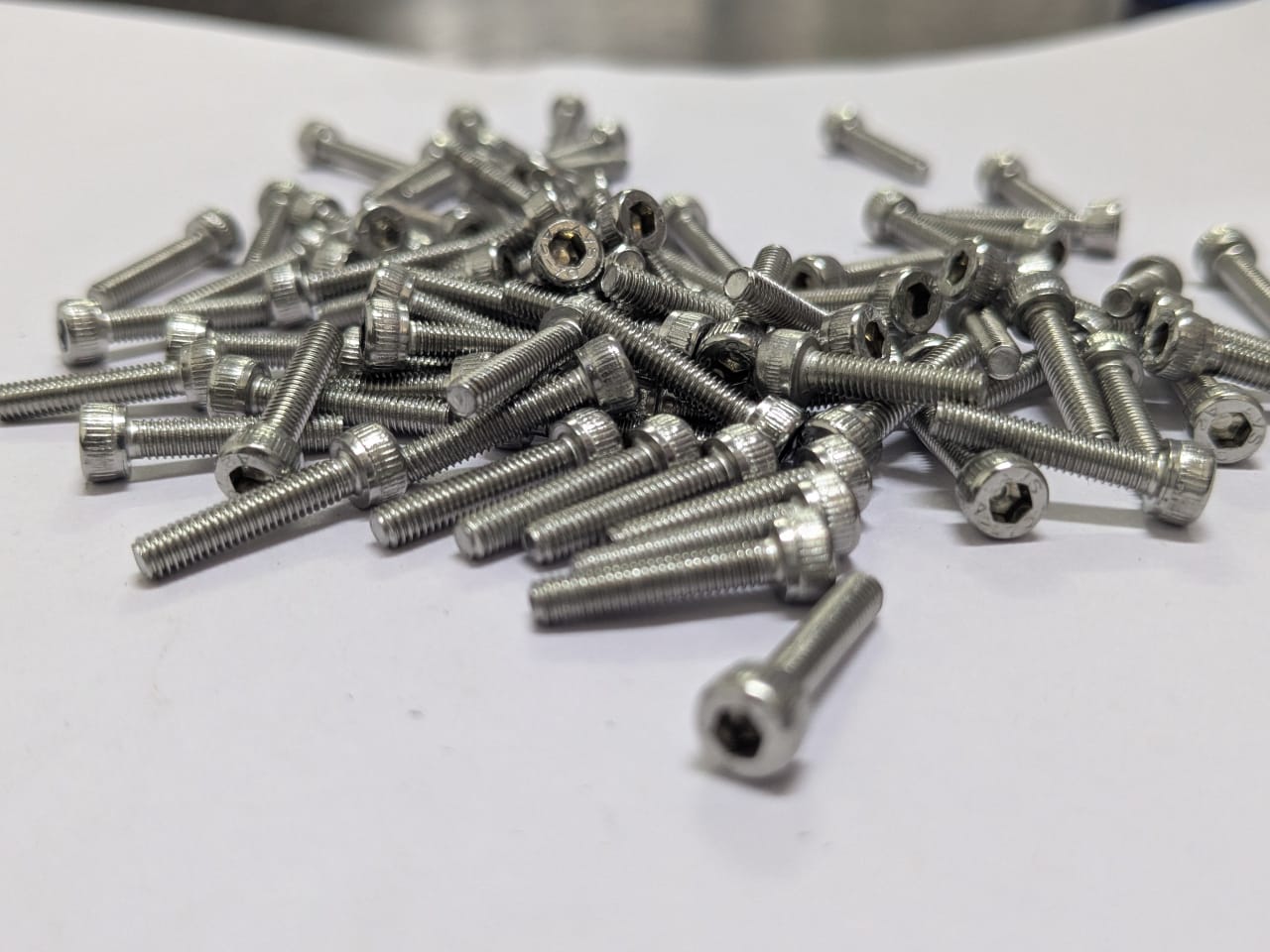

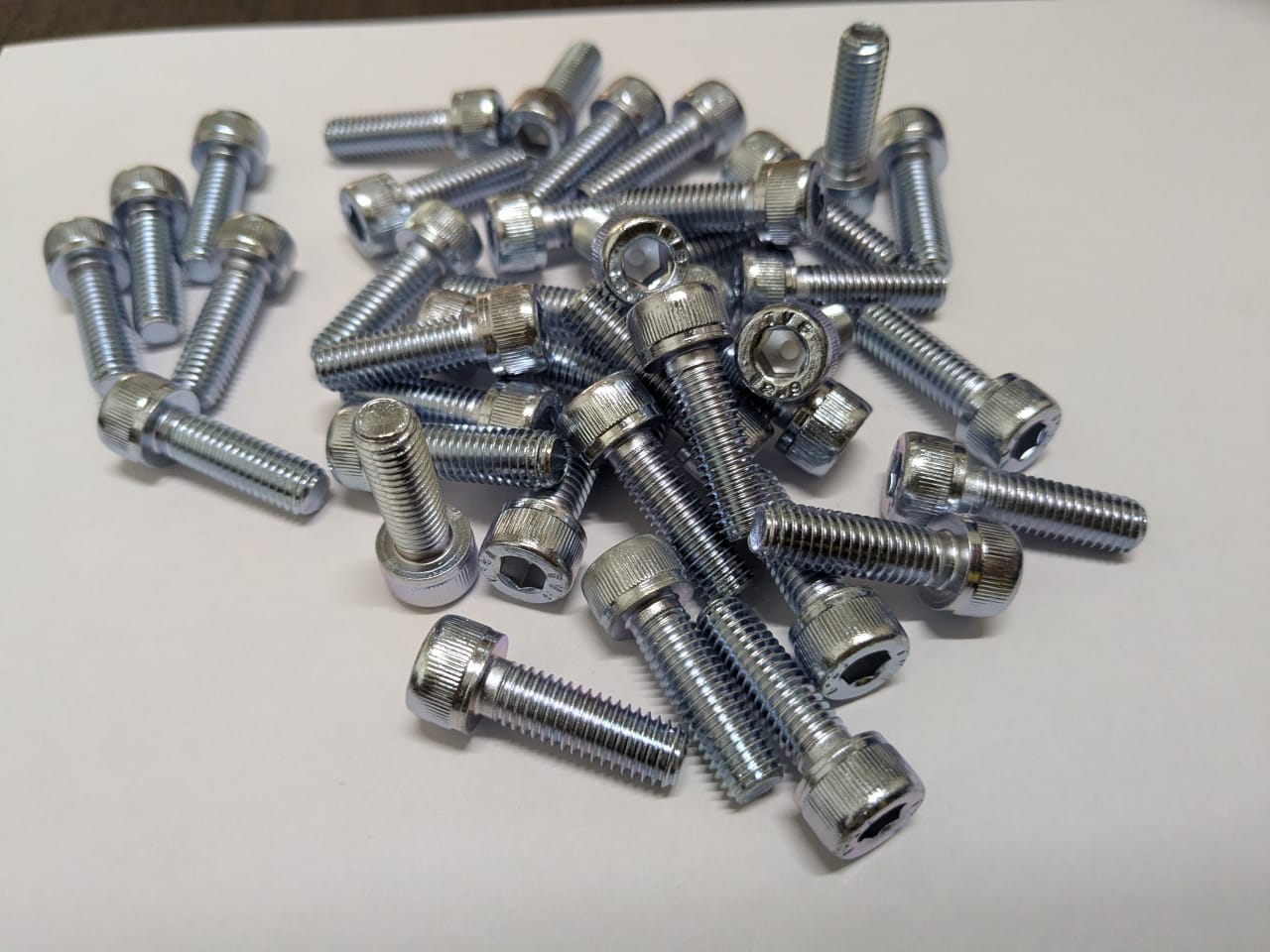

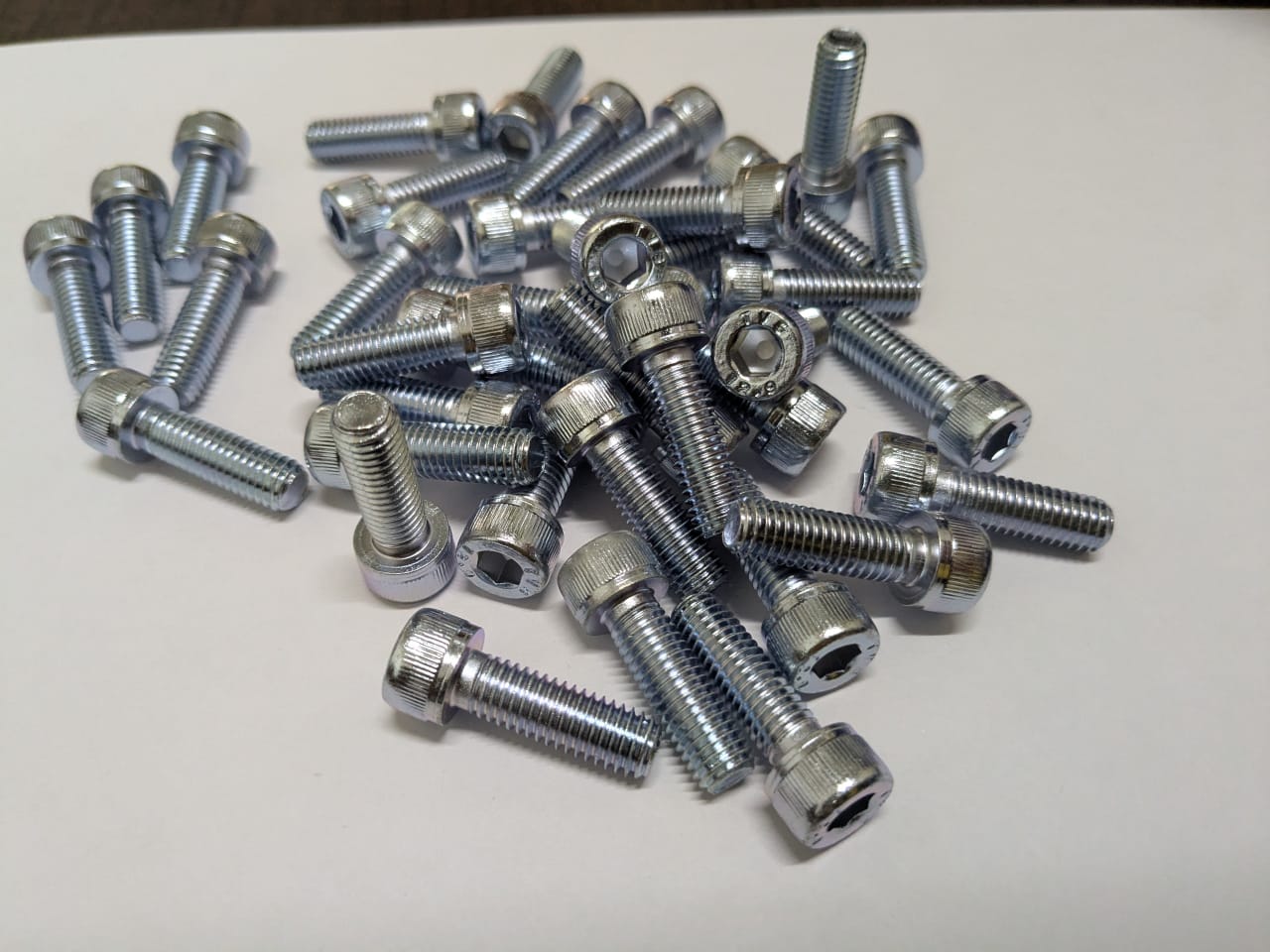

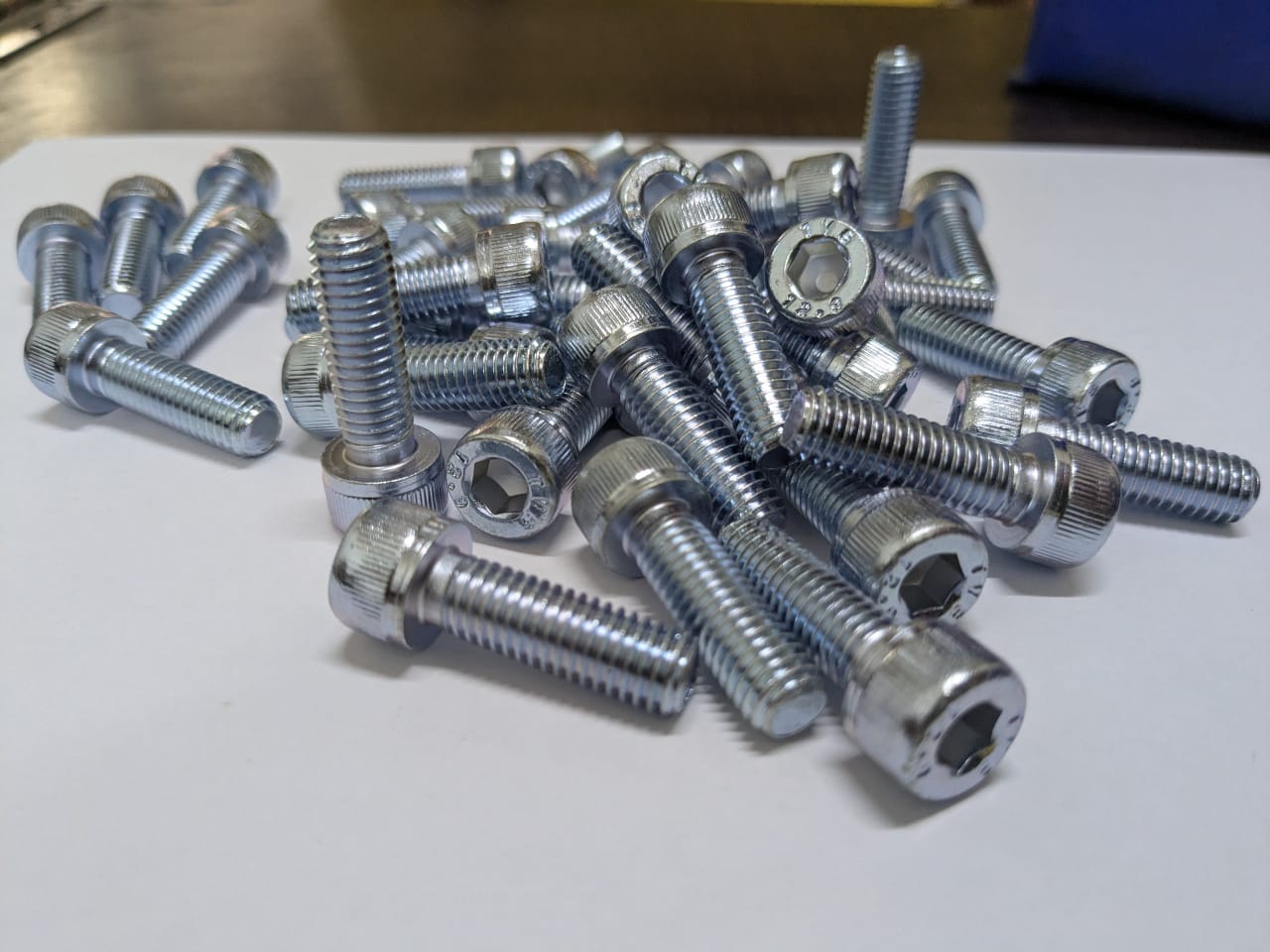

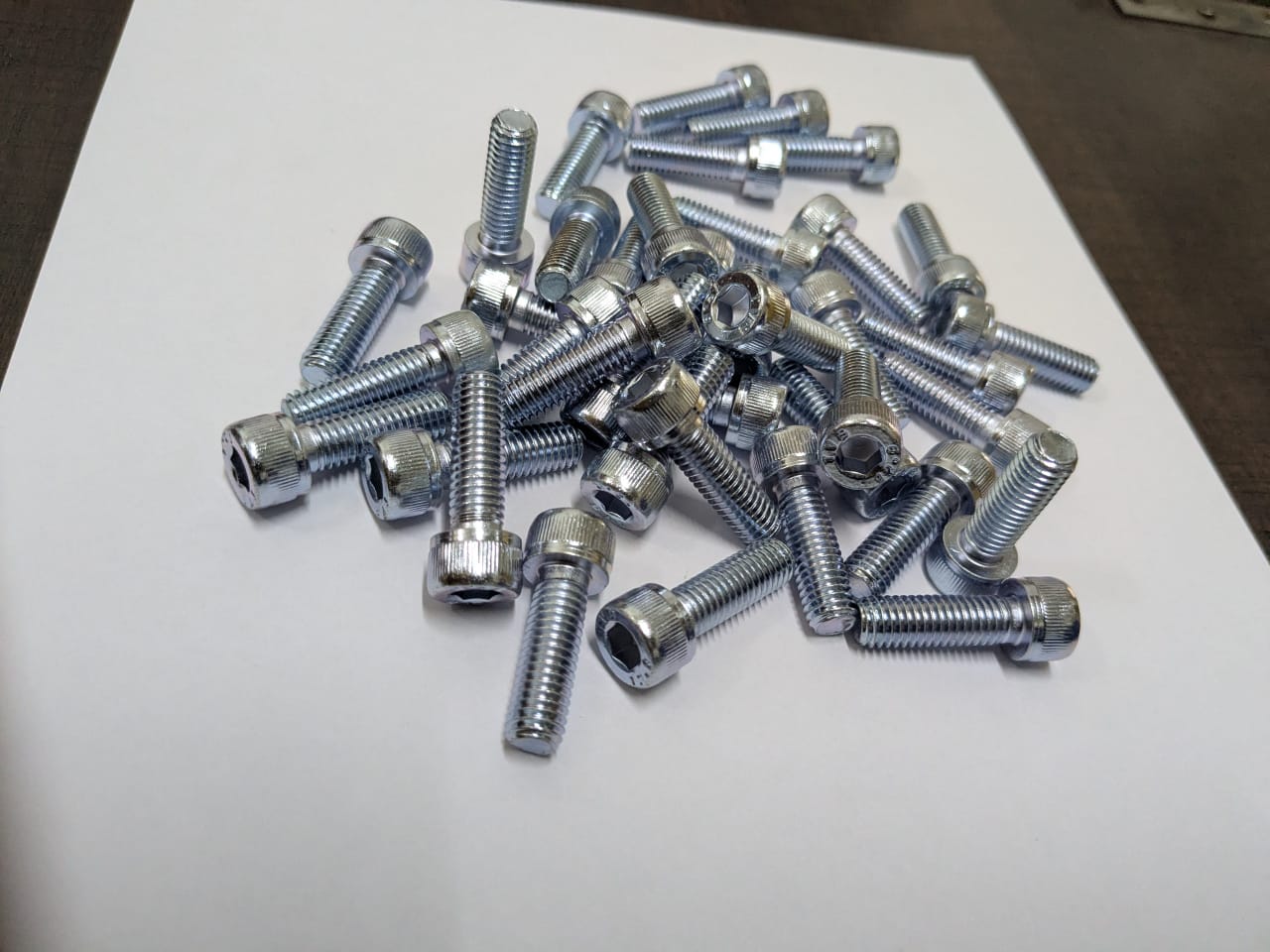

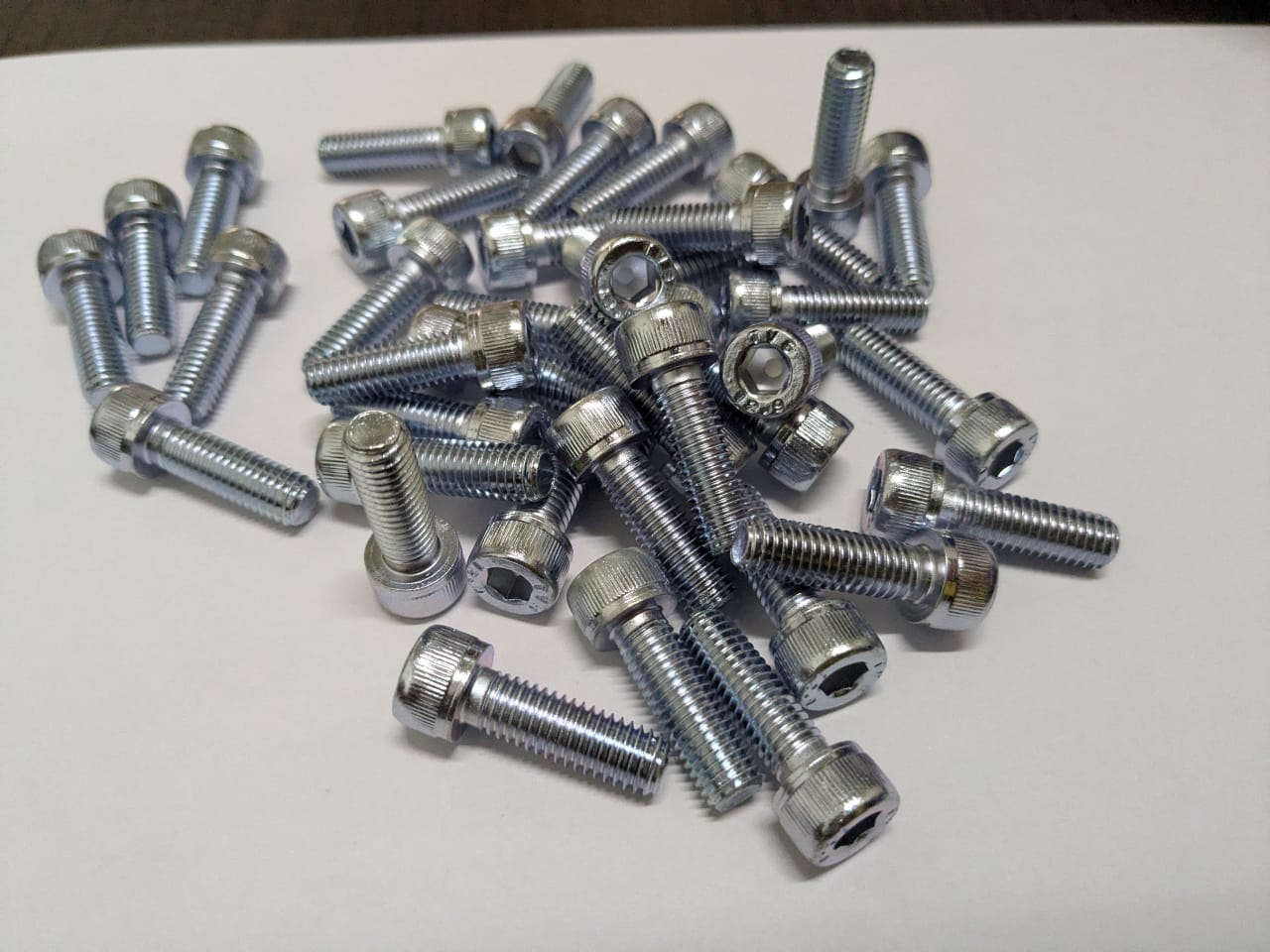

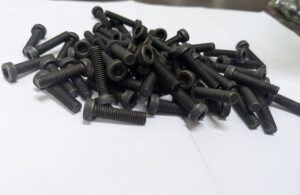

Allen Cap SHCS Full Threaded

Description

Allen cap, also known as a socket head cap screw, is a type of fastener characterized by its cylindrical head and a hexagonal recess (also called an Allen socket) that allows it to be tightened or loosened using a hex key or Allen wrench. These fasteners are widely used across industries due to their compact design, high strength, and neat appearance.

Socket caps have a small cylindrical head with tall vertical sides. Allen (hex socket) drive is a six-sided recess [Internal Hex Socket] for use with an Allen wrench (hex key). This design is the workhorse of the machine building industry.

The most important reasons for the increasing use of socket head cap screws in industry are safety, reliability and economy. All three reasons are directly traceable to the superior performance of socket screws vs. other fasteners, and that is due to their superior strength and advanced design. Available in full thread and half thread.

Types of Allen Caps

Allen caps come in various types, each suited to different applications. The most common include:

1. Socket Head Cap Screws (SHCS): The standard form of Allen cap, used for high-strength applications where precise alignment and torque are required.

2. Button Head Cap Screws: These have a lower profile, rounded head and are often used in applications where appearance or clearance is important.

3. Flat Head Cap Screws: Featuring a countersunk design, these lie flush with the surface once installed, ideal for smooth surfaces or aesthetic requirements.

4. Low Head Cap Screws: These have a reduced head height, useful when space above the fastener is limited.

5. Shoulder Screws (or Stripper Bolts): These have an unthreaded shoulder below the head, used in applications requiring sliding, pivoting, or precise spacing.

Applications of Allen Caps

Allen caps are found across a wide spectrum of industries due to their reliability and versatility:

• Automotive and Aerospace: Used in engines, transmissions, aircraft structures, and other high-performance systems where space, weight, and strength are critical.

• Machinery and Equipment: Preferred in mechanical assemblies, robotics, CNC machines, and automation systems where tight tolerances and consistent torque application are required.

• Electronics and Instrumentation: Employed in the assembly of enclosures and components, offering a clean look and secure fit.

• Furniture and Consumer Products: Common in flat-pack or modular furniture where user-assembly is involved, thanks to their ease of use with an Allen key.

Advantages

• High Strength: The deep internal hex socket allows for greater torque to be applied without damaging the head.

• Compact Head Design: Makes it possible to use these screws in tight or recessed spaces where other fasteners wouldn’t fit.

• Clean Appearance: Especially important in visible installations or products that prioritize design and aesthetics.

• Ease of Use: Hex keys are simple, inexpensive tools, and the engagement with the screw is reliable and slip-resistant.

• Variety: Available in multiple materials, finishes, and head types to suit a wide range of mechanical and environmental demands.
