Plain Washers – Larger OD

Description

Plain washers are essential components in mechanical assemblies, primarily used to distribute load and protect surfaces from damage. Among the various types, plain washers with larger outer diameters (OD) are specifically designed to provide enhanced surface coverage and load distribution. These washers are critical in applications where soft materials, oversized holes, or increased bearing area are involved. Their broader size profile makes them ideal for both heavy-duty industrial applications and environments requiring maximum joint stability.

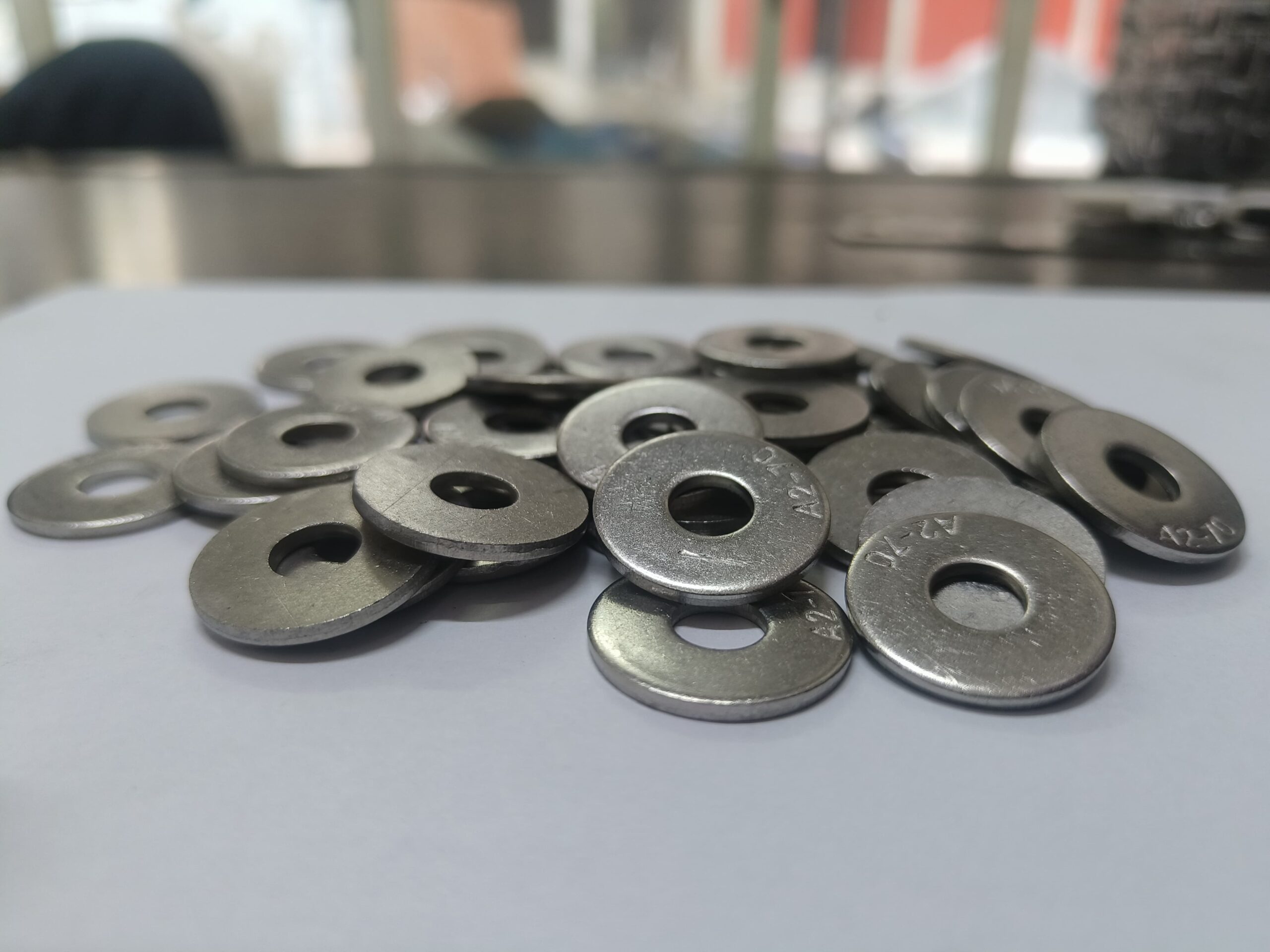

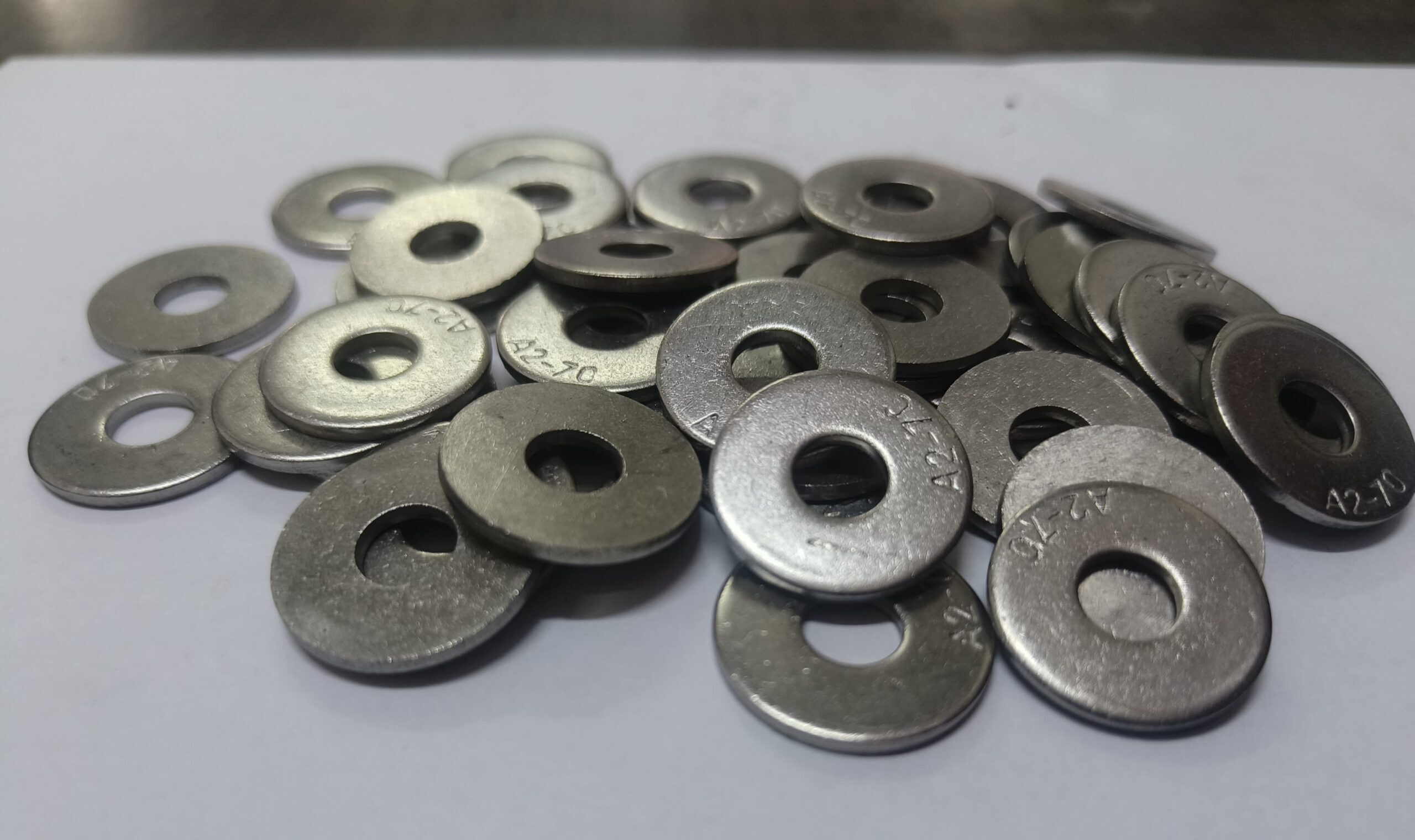

A plain washer with a larger OD is a flat, disc-shaped metal or non-metal ring with a central hole (inner diameter or ID) to accommodate bolts, screws, or studs. The key difference lies in the outer diameter, which is significantly wider than standard washers of the same inner diameter. This extended size increases the surface area in contact with the material, reducing pressure and preventing embedding or deformation.

Larger OD washers are used for irregular holes, softer materials and larger holes.

They are sometimes referred to as “Fender Washers” and distribute the load over a larger area making them useful for materials such as wood and plastics.

Key Features and Advantages of Plain Washers – Larger OD

• Superior Load Distribution: The increased surface area spreads out the load over a larger region, minimizing the risk of surface damage.

• Ideal for Soft Materials: Perfect for use with wood, plastic, or aluminum, where standard washers may sink or dig into the surface.

• Covers Oversized or Elongated Holes: Useful in repair work or applications with clearance holes that are larger than the fastener.

• Reduces Surface Deformation: Helps maintain the integrity of the joint surface, especially under high-torque conditions.

• Improves Joint Integrity: By preventing fasteners from pulling through, larger OD washers contribute to safer, more durable assemblies.



Applications of Plain Washers – Larger OD

Due to their robust design, plain washers with large OD are widely used across industries:

a. Construction and Infrastructure

These washers are common in structural joints, wooden assemblies, and framework systems, where they help distribute loads over large surfaces and prevent bolts from pulling through.

b. Electrical and Telecommunication Towers

Larger OD washers are used in bolted connections to ensure stability and load spreading, especially in windy or high-vibration environments.

c. Automotive and Heavy Machinery

They are frequently used in body panels, suspension mounts, and mounting brackets to minimize deformation and enhance the life of bolted joints.

d. Marine and Offshore Equipment

The use of stainless steel large OD washers in marine applications ensures stability and corrosion resistance under harsh environmental conditions.

e. Repair and Retrofitting Work

When reworking equipment with oversized or worn holes, large OD washers compensate for irregularities and restore fastening strength.
