Circlips

Category:

Description

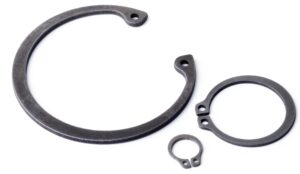

circlip (a portmanteau of “circle” and “clip”), also known as a C-clipsnap ring, or Jesus clip,[1] is a type of fastener or retaining ring consisting of a semi-flexible metal ring with open ends that can be snapped into place into a machined groove on a dowel pin or other part to permit rotation but to prevent axial movement. There are two basic types of circlips: internal (fitted into a bore) and external (fitted over a shaft). Circlips are often used to secure pinned connections.

Details

When used to retain piston wrist pins or gudgeon pins, the clips are known as wrist pin clipswrist pin retainers, or gudgeon pin clips. The most commonly used circlip for this application is a simple spring steel circlip, or plain wire ring.

The term “Jesus clip” is a comical reference given to it due to its tendency to come loose and launch itself at high speed while removing or installing it, often leading to the remark “Oh Jesus, where did it go?”[2]

Types Of Circlips

RS PRO | Stainless Steel External Circlip, 19mm Shaft Diameter, 18mm Groove  Diameter | 209-6687 | RS Components





Common examples include e-clips (e-rings) and the snap ring (both internal and external) or circlip. These general types of fasteners are sized to provide an interference fit onto (or into, in the case of an internal fastener) a groove or land when in use, such that they must be elastically deformed in order to install or remove them.

Installation and maintenance

The name snap ring generally refers to circlips that have the ends formed to aid installation and removal and are not formed from wire (i.e., do not have a round cross-section). These rings are designed to be installed and removed with special pliers. Some of these special pliers can be configured for internal or external clips, while in other cases, one plier is used for internal clips and another for external clips. For expediency in the field, a pair of needle-nose pliers (for internal clips) or leverage with a flat-headed screwdriver (internal or external) is sometimes used.

Since most snap rings are stamped from sheet steel, one side is slightly rounded and the other has sharp, rough edges. This is due to the stamping die behaving like a cookie cutter and causing a slight rounding of the upper edge of the cut clip. The snap ring must always be installed such that force is transmitted to the retaining groove from the rounded side of the ring, not the rough or square-edged side. If a snap ring is positioned such that its flat side is pressed into the rounded edge of the groove, then when load or force is applied, the flat edge of the snap ring will “bite” into the rounded edge of the retaining groove. The snap ring will distort and ride up the rounded edge, spreading an external snap ring and compressing an internal snap ring. This leaves the clip prone to being forced out of its groove and failing at its retaining function. The accompanying images illustrate the correct orientation of the snap ring in its groove. Wet or dry lubrication is recommended to reduce friction against the circlip and maintain function.
