Hex Nut

Description

A hex nut is used with a screw or hex head bolt to fasten two or more wood or metal parts. Hex nuts are often used in construction for framing or to create a bolted joint.

Specifications:
Metric Series: IS 1364, ISO 4032, DIN 934

Mechanical: For alloy steel property class 8 as per IS 1367, ISO 898 part II.

Size Range : Metric M1.2 onwards, Unified UNC 2-56 onwards

Standard Coarse pitch and some FINE-Pitch sizes available.
A limited range of LH nuts available.

Characteristics of Hex Nuts

Hex nuts possess several defining features that make them a staple in mechanical fastening:

1. Hexagonal Shape
   The six-sided shape offers ease of access from different angles, allowing tools like wrenches or sockets to grip and apply torque effectively.

2. Threaded Interior
   The internal threads of a hex nut are designed to match with the threads on a bolt or screw, creating a tight and secure fit.

3. Versatility
   Hex nuts are available in various sizes, thread pitches, materials, and coatings, making them highly versatile and adaptable to a wide range of applications.

4. Standardized Design
   Hex nuts conform to internationally recognized standards such as ISO, DIN, ANSI, and ASTM, ensuring compatibility and consistency across applications.

Types of Hex Nuts

There are several variations of hex nuts, each tailored for specific requirements and environments:

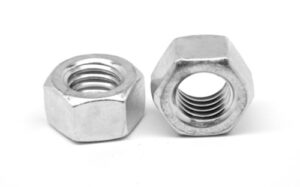

1. Standard Hex Nut (Finished Hex Nut)
   The most common type, used in general-purpose applications. They are typically paired with bolts of the same diameter and thread pitch.

2. Heavy Hex Nut
   Larger and thicker than standard hex nuts, heavy hex nuts provide increased strength and are used in structural or high-load applications.

3. Jam Nut (Thin Hex Nut)
   Thinner than standard hex nuts, jam nuts are often used as a locknut, tightened against another nut to prevent loosening.

4. Nylon Insert Lock Nut
   A variation with a nylon ring inserted into the thread. This ring grips the bolt threads and resists loosening due to vibration.

5. Flange Hex Nut
   Includes a wide flange at one end that acts like a washer, distributing pressure and preventing damage to the surface being fastened.

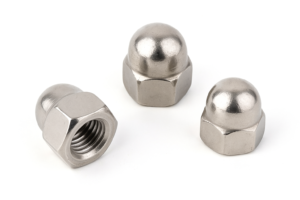

6. Cap Nut (Acorn Nut)
   A hex nut with a domed top that covers the bolt end, providing a finished appearance and protection from exposure.

Advantages of Hex Nuts

Hex nuts are widely used for good reason. Their design and functionality offer several benefits:

• Ease of Use
  Their shape allows for easy tightening and loosening with common tools.

• High Load-Bearing Capability
  When used with compatible bolts, hex nuts can handle significant tension and compression forces.

• Variety of Materials
  Available in materials suited for everything from lightweight household items to industrial machinery and corrosive environments.

• Reusable
  Unless damaged or over-stressed, hex nuts can be removed and reused, making them cost-effective.

• Standardization
  Easily replaceable due to global standardization of sizes and threads.

Common Applications of Hex Nuts

Hex nuts are employed across countless industries and products. Here are some common applications:

1. Construction

Used extensively in steel structures, bridges, and concrete anchor systems. Paired with bolts and washers, hex nuts hold steel beams and support elements securely.

2. Automotive Industry

Found in nearly every vehicle component — from engine mounts to suspension systems. Lock nuts and flange nuts are common in automotive assemblies.

3. Machinery and Equipment

Used to fasten machine frames, tool parts, enclosures, and moving components. In high-vibration environments, lock nuts or jam nuts are typically preferred.

4. Electronics and Appliances

Used in securing circuit boards, housing panels, and mechanical assemblies in various consumer products.

5. Aerospace

Hex nuts made of titanium or aerospace-grade alloys are used in aircraft and spacecraft due to their high strength-to-weight ratio and corrosion resistance.
