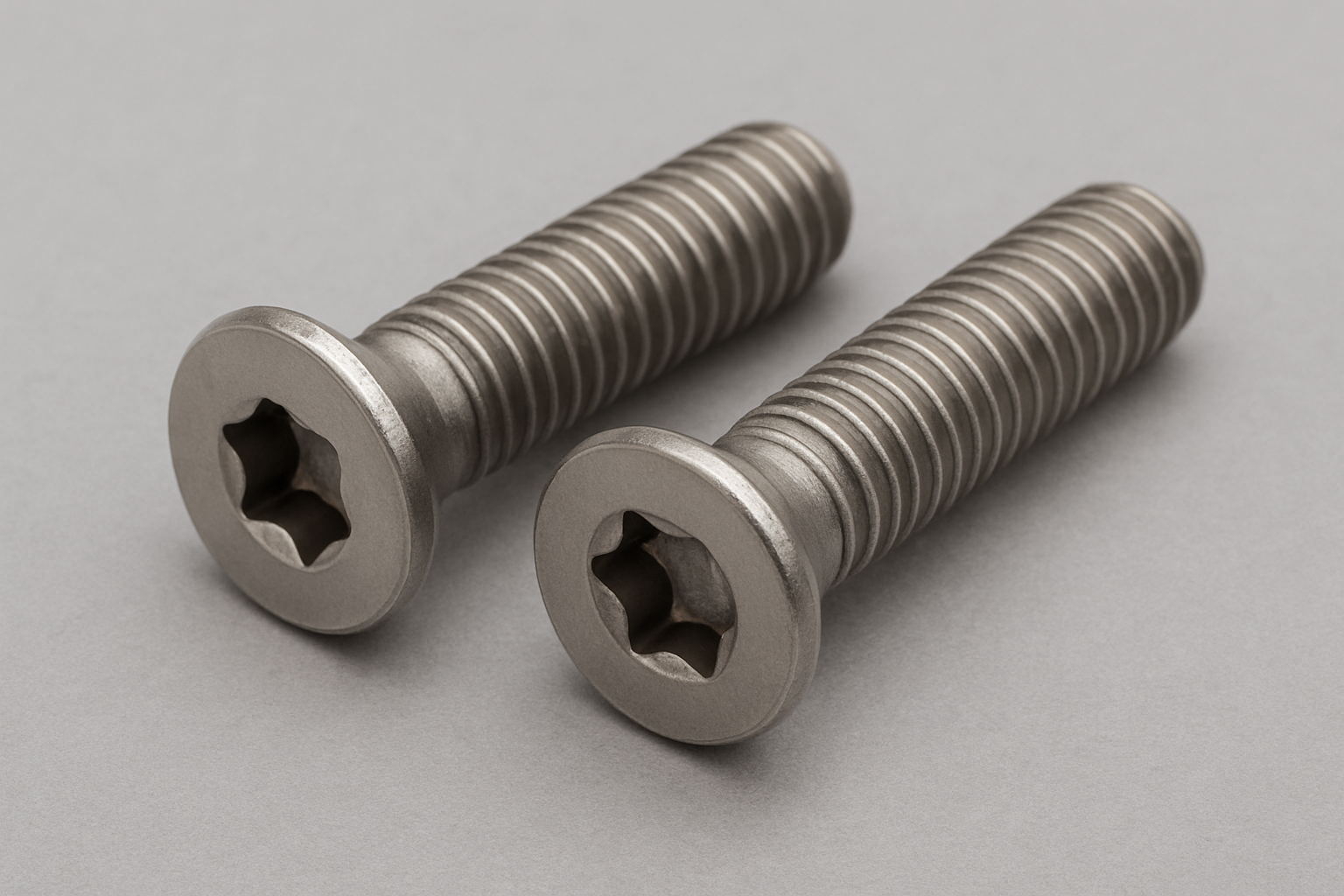

Allen CSK Torx

Description

Allen CSK Torx Screws: Flat head screws are used for flush mounting of sections, usually where one part slides over another or one part is mounted on another. Countersunk head screws, like button heads and low heads, are limited by configuration in their tensile strength capability.  Because of this, they should not be used in applications requiring full strength, where Socket Head Cap Screws should be used.

The head angle for metric countersunk socket screws is 90 degrees up to & including M20 and 60 degrees over M20. The head angle for Imperial is different – Unified is 82 degrees and British thread forms are 90 degrees.

Usage : Machine Guards, Hinges, Covers, multiple level assemblies etc.

Available in Hexagonal socket drive and the improved 6-Lobe (Hexalobular) drive.

Applications of Allen CSK Torx Screws

Allen CSK Torx screws (more accurately: CSK Torx screws) are widely used where aesthetics, flush mounting, and torque control are essential. They are preferred in:

• Electronics: For clean assembly in devices like laptops, phones, and appliances.

• Aerospace and automotive: For aerodynamic and safety-critical applications where fasteners should not protrude.

• Furniture and cabinetry: Where flush finishes are desired for both form and function.

• Medical devices: Where smooth surfaces aid in sterilization and safety.

• Mechanical assemblies: In precision systems where alignment and surface clearance are crucial.

Advantages of Allen CSK Torx Screws

1. Flush Fit: The countersunk head allows the fastener to sit even with the surface, which is critical in moving parts, sliding surfaces, or aesthetic designs.

2. High Torque with Low Cam-Out: The Torx drive enables strong, consistent torque without stripping the head.

3. Efficient Power Tool Use: Torx heads perform well in automated assembly environments due to excellent driver engagement.

4. Durability: With reduced wear on tools and screw heads, the lifespan of both increases.

5. Security Options: Available in tamper-resistant Torx variants (with a central pin), deterring unauthorized access.
